Before digital systems can process a discrete binary zero or one, electrical energy exists in the analog domain. In this domain, voltages and currents vary continuously over time. Understanding analog circuits is not merely an exercise in historical technology; it is a mandatory prerequisite for interacting with the physical world, conditioning sensor inputs, and driving high-power outputs. This guide examines the fundamental principles of continuous signal processing, the characteristics of passive components, the underlying physics of semiconductors, and the versatile application of operational amplifiers.
Passive Component Theory
Passive components do not require an external power source to operate and cannot introduce net energy into a circuit. However, their ability to store and dissipate energy is the cornerstone of signal shaping and timing.

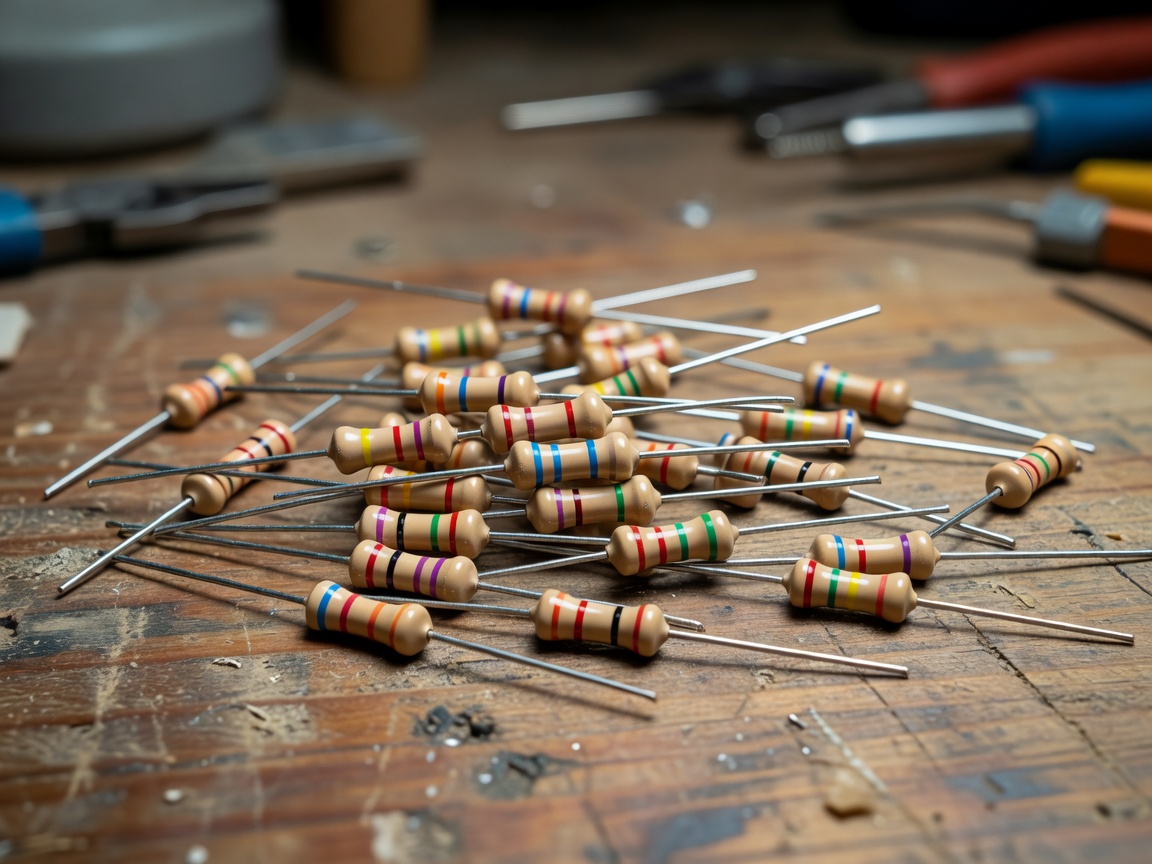

Resistors and Ohm's Law
Resistors dissipate electrical energy as heat, providing a direct, linear relationship between voltage and current as defined by Ohm's Law (V = IR). In circuit design, resistors are used for current limiting, voltage division, and impedance matching. When analyzing a resistive network, understanding power dissipation (P = V²/R) is just as critical as the resistance value itself, as exceeding thermal limits leads to component failure.
Capacitors and Electric Fields
Capacitors store energy in an electric field created between two conductive plates separated by a dielectric. Their behavior is time-dependent; the current through a capacitor is proportional to the rate of change of voltage across it (I = C * dV/dt). In the frequency domain, a capacitor's impedance decreases as frequency increases. This makes them indispensable for AC coupling (blocking DC offsets), decoupling (stabilizing power rails by providing instantaneous current), and constructing frequency-selective filters.
Inductors and Magnetic Fields
Inductors store energy in a magnetic field generated when current flows through a coil of wire. Conversely to capacitors, the voltage across an inductor is proportional to the rate of change of current (V = L * dI/dt), meaning they resist rapid changes in current flow. Inductors are heavily utilized in radio frequency (RF) circuits, transformers, and switched-mode power supplies, where their energy storage capabilities enable efficient voltage conversion.
Semiconductor Fundamentals
The transition from passive networks to active circuits relies on semiconductor materials, typically silicon, whose conductivity can be dynamically controlled. Through a process called doping, silicon is altered to have an excess of electrons (N-type) or an excess of 'holes' (P-type).
The PN Junction and Diodes
When P-type and N-type materials are joined, they form a PN junction. A depletion region forms at the boundary, creating a built-in potential barrier. By applying a forward bias voltage (typically ~0.7V for silicon), the barrier narrows, and current flows freely. Under reverse bias, the barrier widens, blocking current. This unidirectional current flow defines the diode, which is utilized in rectification, transient voltage suppression, and signal demodulation.
Transistor Topologies
Transistors are the primary active components used for amplification and switching. There are two dominant families:
- Bipolar Junction Transistors (BJT): Current-controlled devices consisting of NPN or PNP layer structures. A small current entering the base controls a much larger current flowing between the collector and emitter. BJTs are prized for their high transconductance and linearity in audio and RF amplification.
- Field Effect Transistors (FET/MOSFET): Voltage-controlled devices where an electric field modulates the conductivity of a semiconductor channel. Because the gate is insulated from the channel, MOSFETs draw virtually no steady-state input current, making them highly efficient for digital logic gates and high-power switching applications.
Operational Amplifiers
The Operational Amplifier (Op-Amp) is a highly versatile, DC-coupled, high-gain electronic voltage amplifier with a differential input and, typically, a single-ended output. While designing with discrete transistors requires complex biasing calculations, op-amps abstract this complexity, allowing engineers to dictate circuit behavior primarily through external feedback networks.
Ideal vs. Practical Characteristics
In theoretical circuit analysis, an "ideal" op-amp has infinite open-loop gain, infinite input impedance, zero output impedance, and infinite bandwidth. Under these assumptions, analysis is vastly simplified by two rules when negative feedback is applied: the inputs draw no current, and the output will adjust to keep the voltage difference between the inverting and non-inverting inputs at zero.
In practical application, however, engineers must account for non-ideal parameters:
- Gain-Bandwidth Product (GBWP): The open-loop gain decreases as frequency increases. If an op-amp has a GBWP of 1 MHz, a circuit configured for a gain of 10 will have a maximum bandwidth of 100 kHz.
- Slew Rate: The maximum rate of change of the output voltage. Exceeding the slew rate leads to severe signal distortion, particularly in high-frequency or high-amplitude signals.
- Input Offset Voltage: A small differential voltage inherently present at the inputs due to manufacturing imperfections. In high-precision DC applications, this offset must be nullified or calibrated out.
Filter Design Principles
Analog filters permit specific frequency bands to pass while attenuating others. They are categorized as low-pass, high-pass, band-pass, or band-stop. Passive filters use only resistors, capacitors, and inductors but suffer from signal loss (insertion loss) and output impedance variation. Active filters incorporate op-amps, providing gain and preventing load impedance from altering the filter's cut-off frequency. Advanced filter topologies, such as Butterworth (maximally flat passband), Chebyshev (steeper roll-off with passband ripple), and Bessel (linear phase response), offer engineers distinct trade-offs between frequency selectivity and time-domain distortion.
Mastering analog circuits is a lifelong pursuit. The principles covered here provide the groundwork for understanding noise, interference, signal integrity, and the physical limitations that dictate the success or failure of complex electronic systems.
